Olympus Epoch 1000i

Olympus Epoch 1000i 16:64 Phased Array Ultrasonic Flaw Detector for sale, serviced and calibrated by Olympus authorized, tested and works

$6,500
Contact to buy

Have a look related products below

GE Phasor XS

$4,200

GE-Phasor-XS-Ultrasonic-Phased-Array-Flaw-Detector-for-sale
View more

Product Description

Olympus Epoch 1000i 16:64 Phased Array Ultrasonic Flaw Detector for sale, still like new, been serviced and calibrated by Olympus authorized, tested and works flawlessly with Olympus working standards

This Epoch 1000i sale has 16:64 phased array and load of software options including

  • Encoded B-Scan
  • Encoded C-Scan
  • 16:64 Phased Array S-Scan
  • DGS
  • DAC
  • AWS
  • BEA
  • Floating Gates

Olympus Epoch 1000i Phased Array sale includes;

  • Olympus Epoch 1000i
  • Installed software: DAC, TVG/DGS, AWS 1.1, BEA-Back echo attenuation
  • Hard Case
  • Charger
  • Power Cord
  • Lithium Ion Battery

Phased Array Imaging Package:

  • EN12668-1 compliant
  • 37 digital receiver filter selections
  • 6 kHz pulse repetition rate for high speed scanning
  • Automatic phased array probe recognition
  • Intuitive wedge delay and sensitivity calibration for all focal laws
  • Programmable analog/alarm outputs
  • Designed for IP66 environmental rating
  • Horizontal design with navigation panel and knob parameter adjustment
  • Digital high dynamic range receiver
  • Full VGA sunlight readable display
  • ClearWave visual enhancement package for conventional A-scan interpretation
  • SureView visualization feature
  • Reference and measurement cursors
  • Standard dynamic DAC/TVG
  • Standard onboard DGS/AVG

EPOCH 1000 Series - Advanced Ultrasonic Flaw Detectors with Phased Array Imaging

The EPOCH 1000 Series Digital Ultrasonic Flaw Detectors combines the highest level of performance for conventional portable flaw detection with the power of phased array imaging. The EPOCH 1000, 1000iR and 1000i feature a horizontal case style with full VGA display, knob and navigation arrows for parameter adjustment, and full EN126681 compliance. The advanced conventional ultrasonic functionality of the EPOCH 1000 series is augmented in the EPOCH 1000i with phased array imaging capabilities.

EPOCH-1000-Key-Features

Key Features

  • Available with Phased Array Imaging package
  • EN12668-1 compliant
  • 37 digital receiver filter selections
  • 6 kHz pulse repetition rate for high-speed scanning
  • Encoded or time-based C-scan option
  • Automatic phased array probe recognition
  • Intuitive wedge delay and sensitivity calibration for all focal laws
  • Programmable analog/alarm outputs
  • Designed for IP66 environmental rating
  • Horizontal design with a navigation panel and knob parameter adjustment
  • Digital high dynamic range receiver
  • Full VGA sunlight readable display
  • ClearWave visual enhancement package for con-ventional A-scan interpretation
  • SureView visualization feature
  • Reference and measurement cursors
  • Standard dynamic DAC/TVG
  • Standard onboard DGS/AVG

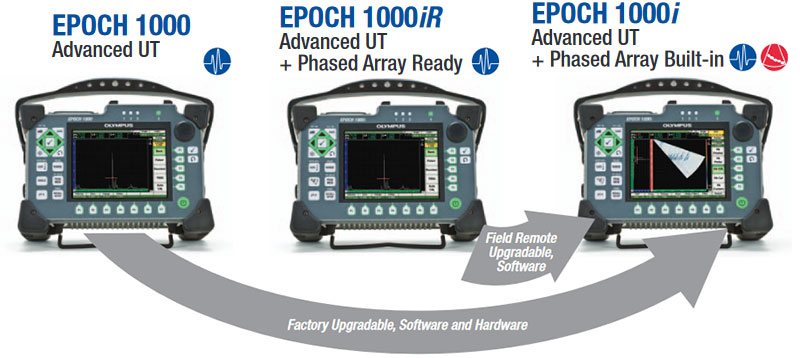

Three instrument configuration levels to suit many inspection needs

EPOCH-1000-Three-instrument-configuration

  • EPOCH 1000 Advanced UT: The EPOCH 1000 is an advanced conventional ultrasonic flaw detector that can be upgraded with phased array imaging at an authorized Olympus service center
  • EPOCH 1000iR Advanced UT+ Phased Array Ready: The EPOCH 1000iR provides the same ultrasonic flaw detection capabilities as the EPOCH 1000 with the benefit of upgrading to phased array with simple field remote activation.
  • EPOCH 1000i Advanced UT+ Phased Array Built-in: The EPOCH 1000i comes standard with the same advanced ultrasonic flaw detection capabilities as the EPOCH 1000 as well as with the benefits of a built in phased array imaging package

EPOCH-1000-Key-Industries-ApplicationsKey Industries and Applications

  • General weld inspection
  • Crack detection and sizing
  • Power generation inspections
  • AWS D1.1/D1.5 weld inspection
  • Casting and forging defect inspections
  • DGS/AVG defect sizing
  • In-line inspections
  • Composite delamination and defect inspections
  • Aerospace and maintenance
  • Automotive and transportation



Advanced Conventional Ultrasound | Upgradeable to Phased Array

The EPOCH 1000, EPOCH 1000iR, and EPOCH 1000i provide advanced conventional ultrasound capabilities for both the standard and advanced level inspector. These portable instruments can also be integrated into small systems for high speed scanning and single channel imaging. They come standard with a host of high performance features, including a 6 kHz maximum Pulse Rate Frequency (PRF) with single shot measurements for accurate high speed scanning applications, tunable square wave pulser with PerfectSquaretechnology, and comprehensive digital filter sets for exceptional signal to noise clarity.

Standard Features

  • Adjustable Pulse Repetition Frequency (PRF): 5 Hz to 6 kHz
  • Single shot measurements in all standard modes
  • Tunable Square Wave Pulser with PerfectSquare technology
  •  Programmable analog and alarm outputs
  • Over 30 digital filter sets
  •  Digital high dynamic range receiver

Software Features

  •  AWS Welding Rating – This weld rating calculator provides a live AWS D1.1/D1.5 code compliant “D” value weld rating for gated flaw indications.
  • Onboard DGS/AVG – The DGS/AVG flaw sizing technique uses calculated attenuation curves to aid operators in sizing potential defects. A vast onboard library of characterized probes allows you to quickly and easily setup a DGS/AVG curve and perform precise flaw sizing.
  • Interface Gate – This optional third measurement gate allows real time tracking of a variable interface echo to maintain consistent digital measurements.
  • Dynamic DAC/TVG – This standard features allows fast and dynamic creation of DAC curves using reference reflectors, as well as single button switching from DAC to TVG mode. Includes ASME, ASME III, JIS, 20% to 80% DAC, Custom, and TVG Table

EPOCH 1000i Phased Array Probe Series

The EPOCH1000i supports a new series of phased array probes to meet the demands of critical inspections. These probes include specialized probes for specific code compliance and standard weld inspection probes, including removable or integral wedge phased array probes.

Fast Switch from Conventional to Phased Array: The EPOCH 1000i is compatible with all standard single element transducers in conventional mode. Switching between conven  tional UT and phased array inspection is as easy as the press of a button. The EPOCH 1000i features a high speed transition from UT to PA mode, allowing you to easily combine conventional UT and phased array inspections

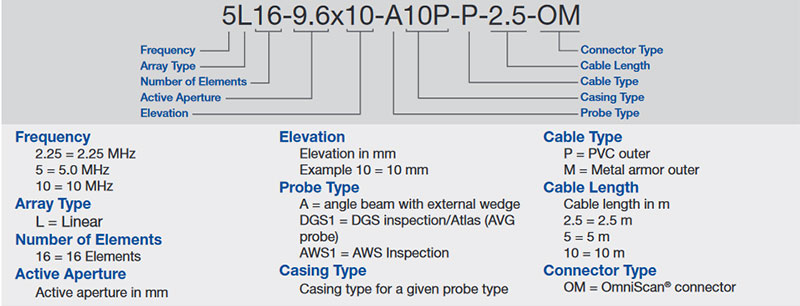

Ordering Information: Numbering systems used to order standard phased array probes.

EPOCH-1000i-Phased-Array-Probe-Series



Probes*

Probe
Description		 Item
Number		 Usage/
Code Compliance		 Frequency
(MHz)		 Number of
Elements		 Pitch Active
Aperture (mm)		 Elevation
(mm)		 Dimensions in mm (in.)
L x W x H
2.25L8-A10P U8330663 General Purpose 2.25 8 1.2 9.6 x 10 10 22.5 (0.89) 15.6 (0.61) 20 (0.79)
5L16-A10P U8330661 5.0 16 0.6 9.6 x 10 10 22.5 (0.89) 15.6 (0.61) 20 (0.79)
10L16-A10P U8330662 10 16 0.6 9.6 x 10  10 22.5 (0.89 15.6 (0.61) 20 (0.79)
2.25L16-AWS1 U8330660 AWS D1.1/D1.5 2.25 16 1.0 16 x 16 16 37.6 (1.48) 25.4 (1.0) 17.8 (0.70)
2L8-DGS1 U8330598 Integral Wedge/
DGS-AVG		 2.0 8 1.0 8 x 9 9 27.3 (1.07) 16.8 (0.66) 22.3 (0.88)
4L16-DGS1 U8330597 4.0 16 0.5 8 x 9 9 27.3 (1.07) 16.8 (0.66) 22.3 (0.88)
5L64-A12 U8330593 General Purpose 5.0 64 -0.6 38.4 x 10** 10 22.5 (0.89 44.6 (1.76) 20 (0.79)
*All probes supplied with 2.5 meter cable and OmniScan style connector. For other variations contact Olympus NDT.
** Represents all 64 elements. Only 16 or fewer elements can be active at one time

Wedges

Wedge Number item Number Matching Probe (s) Nominal Refracted
Beam Angle (in steel)		 Sweep (°) Probe Orientation Dimensions in mm (in.)
L x W x H
SA10P-0L U8720704 2.25L8-A10P, 5L16-A10P,
10L16-A10P		 0° LW –30 to 30 Normal 25.4 (1.0) 23.1 (0.91) 20 (0.79)
SA10P-N55S U8720705 2.25L8-A10P, 5L16-A10P,
10L16-A10P		 55° SW 30 to 70 Normal 23 (0.91) 23.2 (0.91) 14.2 (0.56)
SAWS1-0L U8700264 2.25L16-AWS1 0° LW –30 to 30 Normal 38 (1.49) 37.6 (1.48) 40 (1.57)
SAWS1-N60S  U8720552 2.25L16-AWS1 55° SW 30 to 70 Normal 45.3 (1.78) 38 (1.49) 30.3 (1.19)
SA12-0L U8720549 5L64-A12 0° LW –30 to 30 Normal 61.8 (2.43) 23 (0.91) 53.4 (2.1
SA12-N55S U8720547 5L64-A12 55° SW 30 to 70 Normal 58 (2.28) 23 (0.91) 23 (0.91)

Download EPOCH 1000 Series Brochure.pdf

Download EPOCH 1000 Series User Manual.pdf
