Olympus Epoch 600 Ultrasonic Flaw Detector for sale, still like new, ready to go to working, all Software Options with Corrosion Module
Have a look related products below
Olympus Epoch 600 Ultrasonic Flaw Detector sale includes;
Software Modules Corrosion Module: CSC (curved surface correction), AWS D1.1 (weld inspection), Dynamic DAC/TVG, DGS/AVG, AWS D1.5, Template Storage, BEA (Backwall Echo Attenuator), API 5UE, Waveform AVG, Data Logging

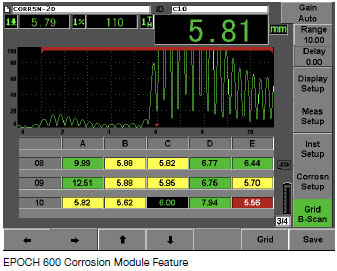

Corrosion Module: Ep600-Aws (U8140147): Aws D1.1/D1.5 Weld Rating, Ep600-Template (U8140148): Template Storage,Ep600-Api5ue (U8140149): Api 5ue Flaw Sizing, Ep600-Xdata (U8140150): Expanded Data Logger File Types, Ep600-Averaging (U8140151): Waveform Averaging, Ep600-Ig (U8140153): Interface Gate, Ep600-Bea (U8140164): Backwall Echo Attenuator (Bea)
The EPOCH 600 digital ultrasonic flaw detector combines industry-leading conventional ultrasonic flaw detection capabilities with the efficiency of a highly portable, intuitive instrument. Provides mid-level flaw detector performance and usability with the quality of Olympus NDT's most full-featured digital ultrasonic instruments.
This optimal balance brings powerful conventional ultrasonic flaw detection features within reach of any level of inspector. Available in two hardware configurations, the compact EPOCH 600 offers the choice to adjust parameters with a knob or with a navigation area on the keypad. The EPOCH 600 is designed to meet the requirements of EN12668-1 and allows a full range of standard and optional flaw detection features. Key standard flaw detection features include 400V PerfectSquareTM tunable square wave pulser, digital filtering for enhanced signal to-noise ratio, single shot measurements at up to 2000 Hz PRF, dynamic DAC/TVG, onboard DGS/AVG, and Echo-to-Echo measurements with gate tracking. Optional application-specific software programs include AWS D1.1 and D1.5, Template Storage, API 5UE, and Waveform Averaging. The large, color transflective VGA display combined with the patent-pending digital High Dynamic Range receiver provides a stable, vivid A-scan representation in both low light and bright sunlight conditions.
Weighing only 1.68 kg (3.72 lb.), the EPOCH 600 with its horizontal, rugged case style is built to withstand the rigors of very harsh and hazardous inspection environments. The navigation pad configuration with sealed case is designed to meet IP67 requirements for very wet or dusty conditions while the knob configuration is designed to meet IP66 requirements. The instrument, with its rubber bumpers on all corners, is tested to high reliability standards for drops, shocks, vibration, and explosive atmosphere. And with a battery life between 12 and 13 hours, the EPOCH 600 is the perfect solution for remote and difficult-to-access inspection locations.
The EPOCH 600 allows several methods of storing, archiving, and reporting of inspection and calibration data. The instrument features onboard memory up to 50,000 individual waveform files (500MB), augmented by an additional 2 GBs of removable memory. It is also fully compatible with Olympus NDT's PC interface program, GageView Pro. With quick file setup functions and flexible data management, logging, and reporting inspection data is simple and efficient.
Key Features
Economy with Quality
The EPOCH 600 combines the efficiency of a basic flaw detector with the quality of Olympus' most powerful fully digital ultrasonic instruments. A full range of dynamic, reliable inspection features are packaged with economy of size and ease of use. This optimal balance brings powerful flaw detection features within reach of any level of inspector.
The EPOCH 600 design is focused on providing a very high level of flaw detection with the simplicity of a basic instrument. The EPOCH 600 is designed to be ergonomic, intuitive, and practical for both experienced and novice ultrasonic inspectors.
Intuitive User Interface
The EPOCH 600 user interface is based on the industry approved EPOCH 1000 Series imaging flaw detector. The EPOCH 600 combines a simple menu structure for instrument settings, calibration and software feature adjustment, with the EPOCH brand's hallmark direct-access key approach for critical inspection functions such as gain and gate adjustment, screen freeze, and file save. Supported in multiple languages, the EPOCH 600 user interface is intuitive for any level of operator.
Portable Design for All Inspection Environments
The EPOCH 600 is designed for use in nearly any inspection environment, from bench top testing in a laboratory to extreme outdoor and hazardous conditions. Designed for IP rating in either knob (IP66) or navigation pad (IP67) configurations, and tested to very high environmental and reliability standards, the EPOCH 600 allows users in any inspection environment to feel confident in both the performance and durability of the instrument. The instrument is tested for vibration, shock, explosive atmosphere, and wide temperature ranges. And with a battery life to exceed 12 hours, the EPOCH 600 is the perfect solution for remote inspection locations.
Vibrant Full VGA Display
The EPOCH 600 features a full VGA (640 x 480 pixels) resolution display. The horizontal design of the EPOCH 600 optimizes the A-scan size and readability on this high quality display. Built with transflective technology, this VGA display provides excellent clarity in indoor, low lighting conditions using its powerful backlight, as well as in direct sunlight by using the ambient light as a pseudo-backlight.
The EPOCH 600 provides excellent quality ultrasonic performance. Based on the same digital architecture as the EPOCH XT, LTC and EPOCH 1000 Series, the EPOCH 600 provides flexible, powerful pulsing and receiving features to accommodate the needs of most flaw detection inspections.
Pulser/Receiver
The EPOCH 600 comes standards with powerful flaw detection capabilities, such as:
Standard Software Features
Dynamic DAC/TVG: Calculates signal amplitude as a percentage or decibel level compared to a DAC curve or a reference echo amplitude fixed at a time-varied gain. DAC versions include ASME, ASME 3, JIS, and Custom. Also includes several key features: dynamically adjustable DAC curves, switchable DAC and TVG views, and custom DAC warning curves.
DGS/AVG: This flaw sizing technique allows echo signals to be evaluated with a DGS/AVG diagram associated to a particular type of probe and material. The DGS/AVG diagram illustrates the relationships between echo height, flaw size, and distance from the transducer.
Curved Surface Correction: Corrects sound path information when using an angle beam transducer to circumferentially inspect a curved surface for either tubular or bar inspections.
Options for Comfortable Navigation

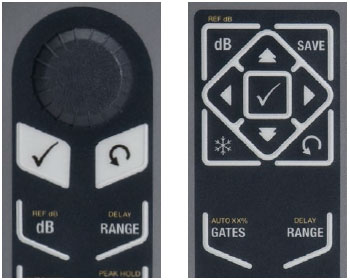

In order to accommodate different user needs and preferences, the EPOCH 600 is available in two hardware configurations: one with an adjustment knob and the other with a navigation area on the keypad. The adjustment knob and the arrow keys on the navigation pad are responsible for parameter adjustment and value slewing.
Knob
The adjustment knob on the EPOCH 600 is used along with the CHECK and ESC keys to adjust parameter values in either coarse or fine increments. You have the ability to lock the knob to prevent accidental parameter value changes during an inspection. This configuration provides smooth value slewing for customers who prefer adjusting parameters using a knob. The knob configuration is designed to meet the requirements of IP66.
Navigation Pad
The EPOCH 600 navigation pad is a hallmark feature of the EPOCH flaw detectors. The up and down arrows on the navigation pad are used for coarse parameter adjustment, and the left and right arrows for fine adjustment. The navigation pad also contains additional functions and frequently used parameters such as gain, save, and the CHECK and ESC keys. The navigation pad configuration is designed to meet the requirements of IP67.
Portable, Rugged, and Ergonomic
VERSATILITY THROUGH OPTIONAL PERFORMANCE
Optional Software Features
Backwall Echo Attenuator (BEA): Attenuates the backwall of an inspected part using the screen region defined by Gate 2.DATA LOGGING AND PC INTERFACING

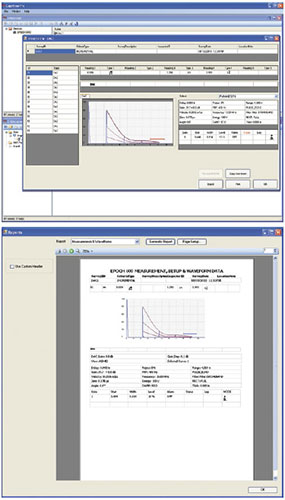

Data Management: The EPOCH 600 allows several methods of storing, archiving and reporting inspection and calibration data. The instrument features up to 50,000 points of onboard memory, augmented by an additional 2 GB of removable memory. It is also fully compatible with Olympus PC interface program, GageView™ Pro. With quick file setup functions and flexible data management, logging and reporting inspection data is simple and efficient.
PORTABLE, RUGGED, AND ERGONOMIC
Physical Features
The EPOCH 600 is a lightweight, portable flaw detector built to be rugged and flexible for nearly any inspection. Some key physical features include:
| INSTRUMENT INPUTS/OUTPUTS | |
| USB ports | USB On-The-Go (OTG) |
| RS-232 port | Yes |
| Video output | VGA output standard |
| Analog output | 1 analog output (optional), Selectable 1 V/10 V Full Scale, 4 mA max |
| Digital output | 3 alarm outputs, 5 V TTL, 10 mA |
| ENVIRONMENTAL RATINGS | |
| IP rating | Designed to meet the standards of the Ingress Protection (IP) rating number IP67 (navigation pad version) or IP66 (knob version) per IEC 60529-2004 (Degrees of Protection provided by enclosures – IP Code). The product design was confirmed to meet the IP rating by means of Olympus internal design verification test process that occurs prior to the release of the product to production |
| Explosive atmosphere |
Safe operation as defined by Class I, Division 2, Group D, as defined in the National Fire Protection Association Code (NFPA 70), Article 500, and tested using MIL-STD-810F, Method 511.4, Procedure I. |
| Shock tested | MIL-STD-810F, Method 516.5 Procedure I, 6 cycles each axis, 15g, 11 ms half sine. |
| Vibration tested | MIL-STD-810F, Method 514.5, Procedure I, Annex C, Figure 6, general exposure: 1 hour each axis |
| Operating Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Battery storage temperature | 0 °C to 50 °C (32 °F to 122 °F) |
EPOCH 600 SPECIFICATIONS*
| GENERAL | |
| Overall dimensions (W x H x D) | 236 mm x 167 mm x 70 mm (9.3 in. x 6.57 in. x 2.76 in.) |
| Weight | 1.68 kg (3.72 lb), including lithium-ion battery |
| Keypad | English, International, Japanese, Chinese |
| Languages | English, Spanish, French, German, Japanese, Chinese, Portuguese |
| Transducer connections | BNC or Number 1 LEMO |
| Data storage | 50,000 IDs onboard, removable 2 GB microSD card (standard) |
| Battery type | Single lithium-ion rechargeable standard |
| Battery life | 12 h to 13 h (lithium-ion), 3 h (alkaline) |
| Power requirements | AC Mains: 100 VAC to120 VAC, 200 VAC to240 VAC, 50 Hz to 60 Hz |
| Display type | Full VGA (640 x 480 pixels) transflective color LCD, 60 Hz update rate |
| Display dimensions (W x H, Diag.) | 117 mm x 89 mm, 146 mm (4.62 in. x 3.49 in., 5.76 in.) |
| PULSER | |
| Pulser | Tunable Square Wave |
| PRF | 10 Hz to 2000 Hz in 10 Hz increments |
| Energy settings | 100 V, 200 V, 300 V or 400 V |
| Pulse width | Adjustable from 45 ns to 5,000 ns (0.1 MHz) with PerfectSquare technology |
| Damping | 50, 100, 200, 400 Ω |
| RECEIVER | |
| Gain | 0 to 110 dB |
| Maximum input signal | 20 V p-p |
| Receiver input impedance | 400 Ω ± 5% |
| Receiver bandwidth | 0.2 MHz to 26.5 MHz at –3 dB |
| Digital filter settings | Eight digital filter sets standard (0.2-10 MHz, 2.0-21.5 MHz, 8.0-26.5 MHz, 0.5-4 MHz, 0.2-1.2 MHz, 1.5-8.5 MHz, 5-15 MHz, DC-10 MHz) |
| Rectification | Full-wave, Positive Half-wave, Negative Half-wave, RF |
| System linearity | Horizontal: ± 0.5% FSW |
| Resolution | 0.25% FSH, amplifier accuracy ± 1dB |
| Reject | 0 to 80% FSH with Visual Warning |
| Amplitude measurement | 0 to 110% full screen height with 0.25% resolution |
| Measurement rate | Equivalent to PRF in all modes |
| CALIBRATION | |
| Automated calibration | Velocity, Zero Offset Straight Beam (First Backwall or Echo-to-Echo) Angle Beam (Soundpath or Depth) |
| Test modes | Pulse Echo, Dual, or Through Transmission |
| Units | Millimeters, inches, or microseconds |
| Range | 3.36 mm to 13,405 mm (0.132 in. to 527 in.) at 5,900 m/s (0.2320 in./μs) |
| Velocity | 635 m/s to 15240 m/s (0.0250 in./μs to 0.6000 in./μs) |
| Zero offset | 0 to 750 μs |
| Display delay | –59 mm to 13401 mm (–2.323 in. to 527.6 in.) @ longitudinal velocity in steel |
| Refracted angle | 0° to 85° in 0.1° increments |
| GATES | |
| Measurement gates | 2 fully independent gates for amplitude and TOF measurements |
| Gate start | Variable over entire displayed range |
| Gate width | Variable from Gate Start to end of displayed range |
| Gate height | Variable from 2 to 95% full screen height |
| Alarms | Positive and Negative Threshold, Minimum Depth (Gate 1 and Gate 2) |
| MEASUREMENTS | |
| Measurement display locations | 5 locations available (manual or auto selection) |
| Gate (1, 2) | Thickness, Soundpath, Projection, Depth, Amplitude, Time Of-Flight, Min./Max. Depth, Min./Max. Amplitude |
| Echo-to-Echo | Standard Gate 2-Gate 1, Optional IF Gate Tracking |
| Other measurements | Overshoot (dB) value for DGS/AVG, ERS (equivalent reflector size) for DGS/AVG, AWS D1.1/D1.5 rating (D), Reject Value |
| DAC/TVG | Standard |
| DAC points | Up to 50 points, 110 dB dynamic range |
| Special DAC modes | Custom DAC (up to 6 curves) |
| Curved surface correction | Standard OD or Bar correction for Angle Beam measurements |
| Corrosion (optional) | Zero-cross measurement algorithm, V-Path correction, Single or Echo-to-Echo |
