Keysight MSOX6004A Oscilloscope 1GHz 4 + 16 Channels

Product Description

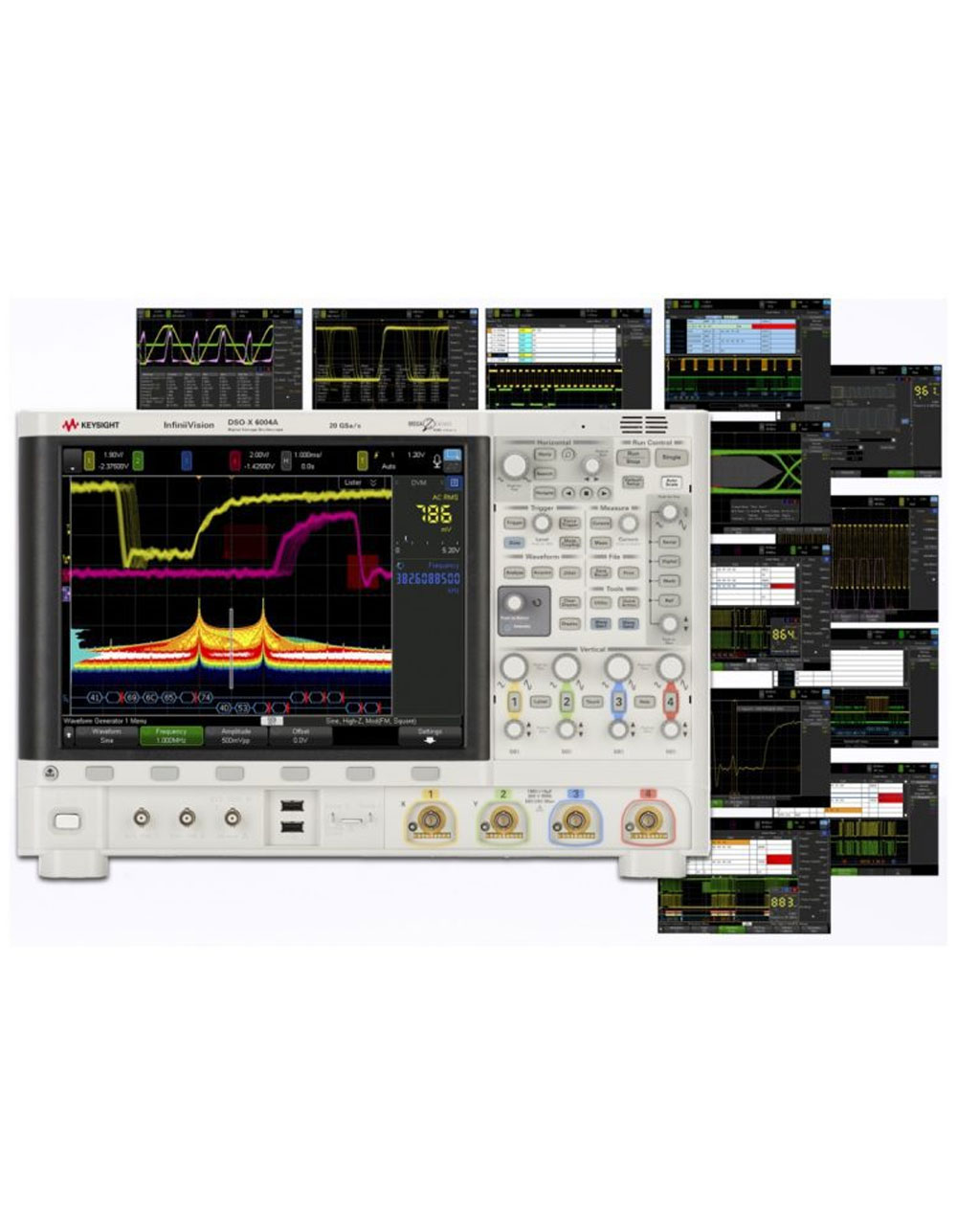

Keysight MSOX6004A InfiniiVision 6000 X Series, 1GHz Bench Oscilloscope (Bandwidth Upgrades to 6 GHz), with 4 analogue channels plus 16 digital channels, 12.1-inch capacitive multi-touch display, InfiniiScan Zone touch triggering, voice control, and the capabilities of up to 6 instruments in 1.

In The Box

• Keysight MSOX6004A InfiniiVision 6000 X Series, 1GHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital
• 3-year Factory warranty (90 days for unserialized accessories such as passive probes)
• Certificate of calibration, 2-year calibration interval
• One N2894A 700-MHz passive probe (10:1 attenuation) per channel
• One N2756A 16-digital-channel MSO cable
• Localized interface front panel overlay and built-in help system in help English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
• Voice control support in English, Chinese Simplified, Chinese Traditional, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish (Latin America) and Spanish (Castilian)
• Localized power cord
• Front-panel cover
• Documentation CD containing localized user’s guide, service guide, and programmer’s manual
• Manuals/Guides

Keysight InfiniiVision 6000 X‑Series Oscilloscopes – 1GHz to 6GHz

The Keysight InfiniiVision 6000 X‑Series Oscilloscopes – A New Standard for Price Performance: Bandwidth, Visualization & Integration Bandwidth. The InfiniiVision 6000 X-Series oscilloscopes are designed for the most demanding engineers who want bandwidth, visualization power and the flexibility that comes with integrated capabilities — but with portability, a familiar embedded OS user interface, and an affordable price.

Feature:

• See higher frequencies with 1 GHz to 6 GHz of bandwidth
• Easily isolate signals in seconds with zone touch triggering
• Make more precise measurements with a low noise floor of 115 μVrms at 1 mV/div and 1 GHz
• Decode serial buses faster with hardware-based serial analysis options
• PathWave BenchVue oscilloscope software for remote control, data logging, and automated testing
• Simulate operations with the advanced math functionality and optional dual arbitrary WaveGen
• Deepen your insight with advanced jitter analysis, time interval error (TIE) plots, histograms, and eye diagrams

InfiniiVision 6000 X-Series digital oscilloscopes are the most advanced members of the InfiniiVision family. They enable you to more deeply analyze signals with capabilities such as histograms, jitter analysis, and eye diagrams. Unlike other oscilloscopes, using these advanced capabilities is easy. An intuitive touch user interface, voice control, and zone triggering make the most complex tasks simple.

Superior signal integrity with total-cost- of ownership leadership 6 GHz, 20 GSa/s. When you choose your next oscilloscope, bandwidth is the most important specification to consider, as it defines the maximum frequency content your oscilloscope can acquire.

Acquiring signals with faster edge rates or faster fundamental frequencies requires higher-bandwidth scopes to make the most accurate measurements. However, the higher the bandwidth of your oscilloscope, the higher the price is likely to be.

Sample rate is the second important specification, as it determines the time span between each acquired sample point, and it ultimately becomes the limiting factor of the oscilloscope’s bandwidth.

In a modern oscilloscope with a brickwall filter response, the sample rate must be at least 2.5 times higher than the bandwidth. So a scope with 6-GHz bandwidth requires a sample rate of at least 15 GSa/s to avoid aliasing.

With the InfiniiVision 6000 X-Series, you can get up to 6-GHz bandwidth and a 20-GSa/s sampling rate so you can confidently measure signals with rise times faster than 150 ps or signals with higher than 2-Gbps NRZ (non-return to zero) data signal rates.

SIMPLIFY DATA GATHERING AND ANALYSIS

PathWave BenchVue oscilloscope software for the PC makes it simple to connect, control, capture, and view measurement data from your oscilloscopes with no additional programming.

• Easily log data, screenshots, and system status
• Save and replicate instrument configurations to repeat results
• Quickly export measurement data in the desired format
• Rapidly prototype and automate custom test sequences

PERFORM SOPHISTICATED SIGNAL ANALYSIS

The 6000 X-Series has the most advanced InfiniiVision analysis tools available:

• Analyze the most difficult parts of your signal with segmented memory and mask testing
• Turn the most advanced triggering into one easy step with zone touch triggering. Simply draw a box with your finger on screen

• Get more out of your oscilloscope with 7-in-1 instrument integration: oscilloscope, frequency response analyzer (Bode plots), logic analyzer / mixed signal oscilloscope (MSO), protocol analyzer, dual arbitrary WaveGen, voltmeter, and a frequency counter
• Protect your investment with full upgradeability at any time for features like bandwidth, instrument integration, and advanced software applications
• Automate tests and collect data with the standard PathWave BenchVue software

Available Models

FIND THE MODEL THAT’S RIGHT FOR YOU
(see datasheet for full specifications)

DSOX6002A

1 GHz (Bandwidth Upgrades to 6 GHz), with 2 analogue channels

12.1-inch capacitive multi-touch display, InfiniiScan Zone touch triggering, voice control, and the capabilities of up to 6 instruments in 1.

MSOX6002A

1 GHz (Bandwidth Upgrades to 6 GHz), with 2 analogue channels plus 16 digital channels

12.1-inch capacitive multi-touch display, InfiniiScan Zone touch triggering, voice control, and the capabilities of up to 6 instruments in 1.

DSOX6004A

1 GHz (Bandwidth Upgrades to 6 GHz), with 4 analogue channels

12.1-inch capacitive multi-touch display, InfiniiScan Zone touch triggering, voice control, and the capabilities of up to 6 instruments in 1.

MSOX6004A

1 GHz (Bandwidth Upgrades to 6 GHz), with 4 analogue channels plus 16 digital channels

12.1-inch capacitive multi-touch display, InfiniiScan Zone touch triggering, voice control, and the capabilities of up to 6 instruments in 1.
