Schneider Electric Square D S33595 Circuit Breaker Full Function Test Kit

Sale Schneider Electric Square D S33595 Circuit Breaker Full Function Test Kit.

This unit is lightly used and professionally serviced, fully calibrated and tested to ensure optimal performance. It has been set up and verified using Schneider Electric authorized working standards, guaranteeing reliable and accurate operation. The system is 100% functional and operates flawlessly, including all required internal and embedded software for normal operation. The unit is not password-protected, allowing immediate and hassle-free use. Included with the unit are all original required cables and power accessories, making it ready for plug-and-play deployment right out of the box.

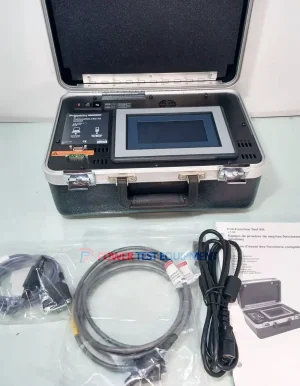

Package includes;

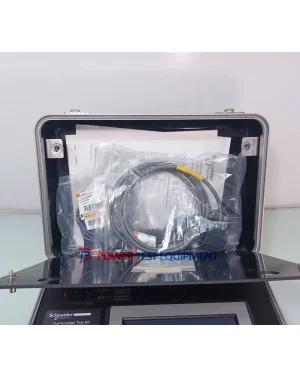

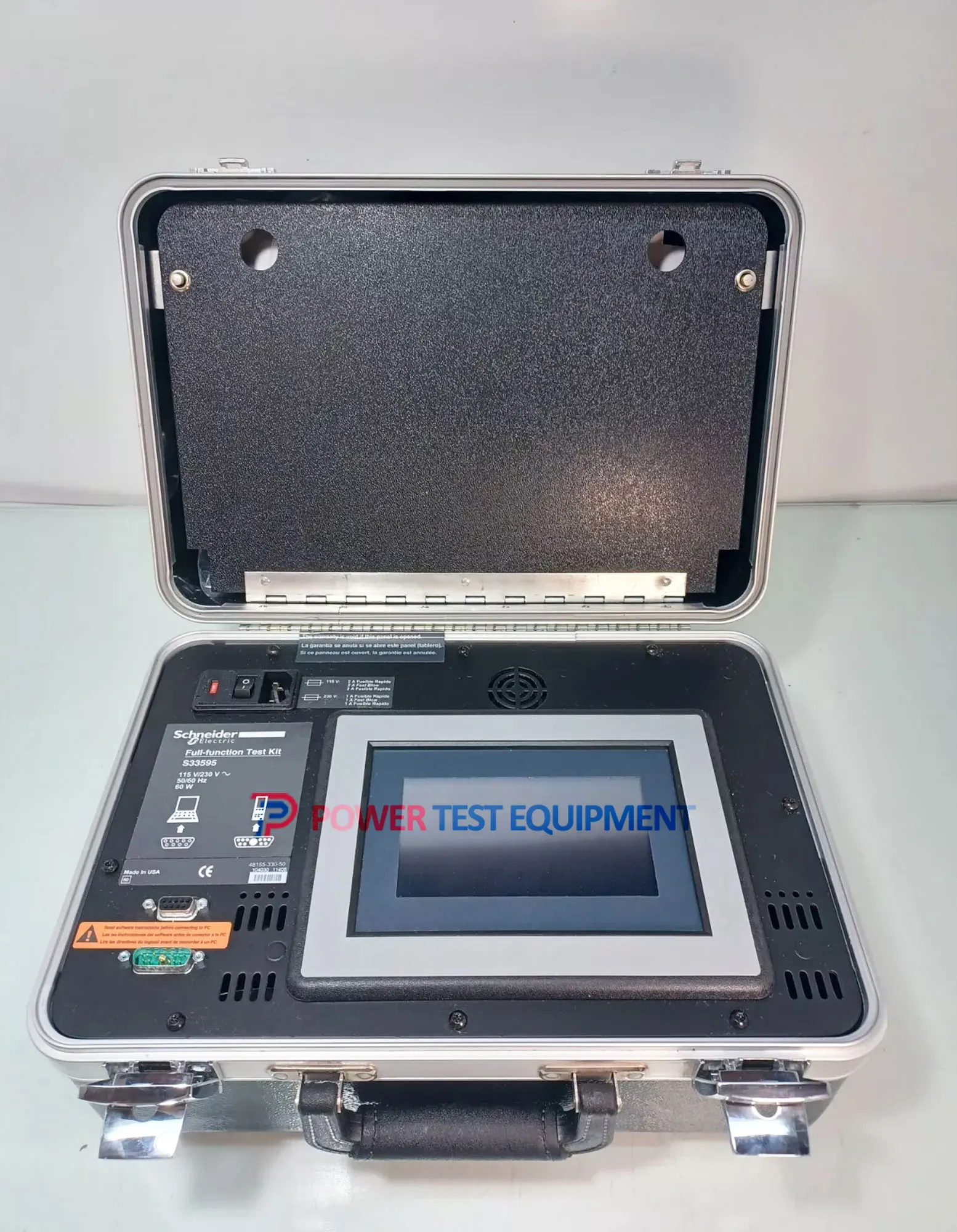

• Schneider Electric Square D S33595 Circuit Breaker Full Function Test Kit

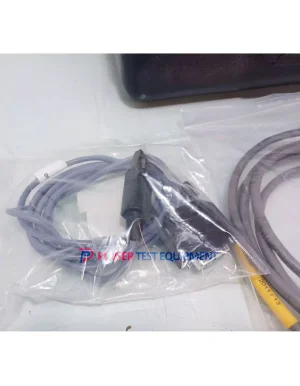

• 7-Pin test cable

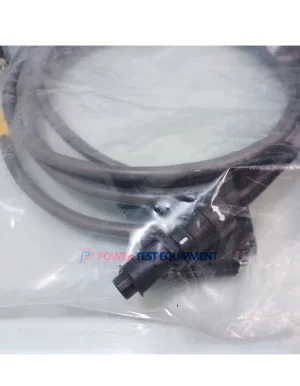

• 2 Pin Test Cable

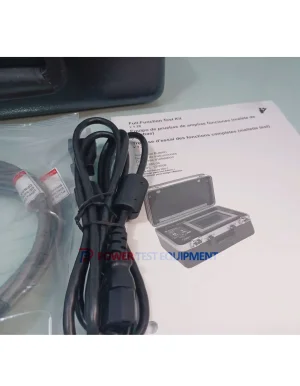

• Power Cord
• RS232 PC Interface Cable
• Hard Copy User Manual

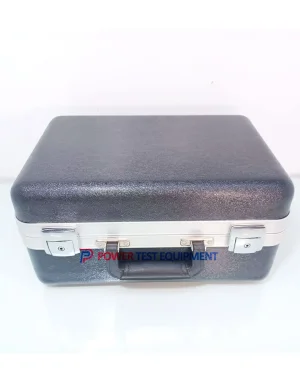

• Protective carrying case

The Square D S33595 full-function test kit consists of a signal-injection box which can be use alone or with a supporting personal computer (PC). The optional test kit software is compatible with Windows 95, 98 and Windows NT Operating systems. The Full-function Test Kit (FFTK) supports testing of a wide variety of trip units in Masterpact® NW/NT, Powerpact® and Compact® circuit breakers.

• Conduct automated and manual trip tests for Micrologic® and STR series using the included 7-pin and 2-pin cables.
• Measure trip-time accuracy (±5 ms, 1 ms resolution) up to 3000 s for coordination verification.
• Inject calibrated voltage (0.031–21.5 Vrms @ 60 Hz) and current (0.02–2.3 A dc) signals with ±3 % accuracy.
• Utilize the built-in 24 V dc output for powering trip units during bench tests.

The test kit without a supporting PC may be used to check:

• The mechanical operation of the circuit breaker
• The electrical continuity of the connection between the tripping coil and the trip unit
• Trip unit operation
  •         Display of settings
  • Operating tests on the electronic component
  • Automatic and manual tests on protection functions (trip curve verification)
  • Tests on the Zone-Selective Interlocking (ZSI) function
  • Inhibition of the ground-fault protection for equipment
  • Inhibtion of the thermal imaging
•     Save test data into test kit

The following trip units can be tested with the S33595 FFTK:

• STR22ME, STR22GE, STR22SE,
• STR23SE, STR23SP, STR43ME
• STR53UP, STR53UE
• ET 1.0M
• ET 1.0I
• ET1.0
• Micrologic 2.0, 3.0, 5.0
• Micrologic 2.0A, 3.0A, 5.0A, 7.0A
• Micrologic 5.0P, 5.0H, 7.0P, 7.0H
• Micrologic 6.0A, 6.0P, 6.0H

Applications

• Shop and field secondary-injection testing of PowerPact P/R and MasterPact NT/NW breakers.
• Ground-fault and ZSI function verification for Micrologic® controllers.
• Protection coordination and maintenance validation of industrial systems.

Specifications:

Determining Trip Unit Compatibility
