GSSI SIR 3000 1.5 GHz Antenna

GSSI SIR 3000 1.5 GHz Antenna for sale

Contact to buy

Have a look related products below

GSSI SIR 3000 1.5 GHz Antenna sale description

GSSI SIR 3000 1.5 GHz Antenna for sale, 1.5 GHz Antenna Model 5100 included Cart, Radan 7 Software for Concrete Scanning

Everything is excellent good ready to working order condition

Package includes

  • GSSI SIR3000 Control Unit
  • Sunshade
  • AC adapter + cable for control
  • 2X Control Unit Batteries
  • Controller Box (Pelican 1550)
  • Radan 7 Software
  • Documentation
  • 2X Manual books
  • Manual DVD
  • Laminated Sheet

Box with Antenna and wheel

  • 1.5 Ghz Concrete Scanning Antenna Model 5100 Control Unit
  • Survey wheel
  • 2X Antenna drag handle

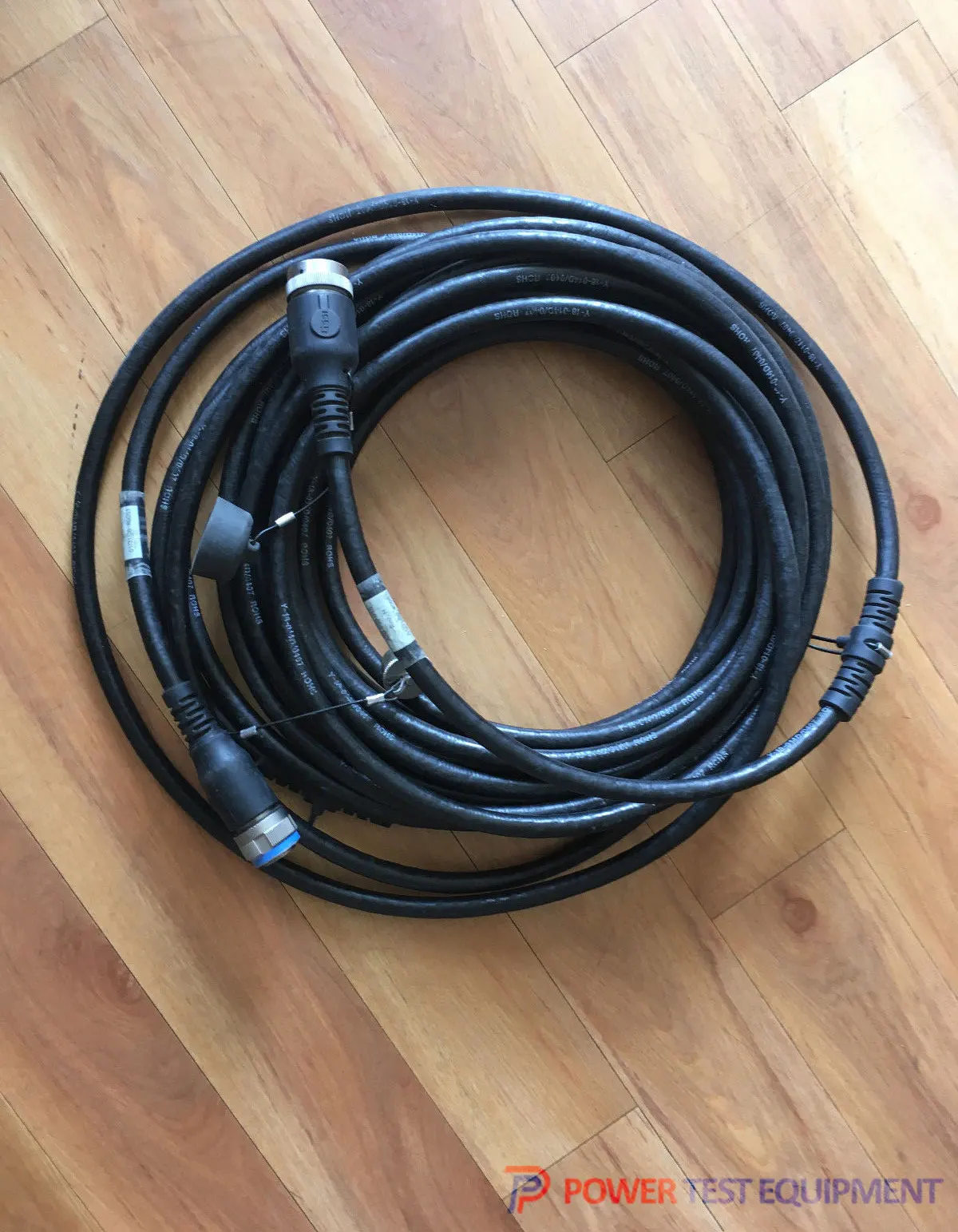

  • 2X Cables, blue
  • Control Unit battery charger + AC
  • Tapes 50m
  • Baby stroller system

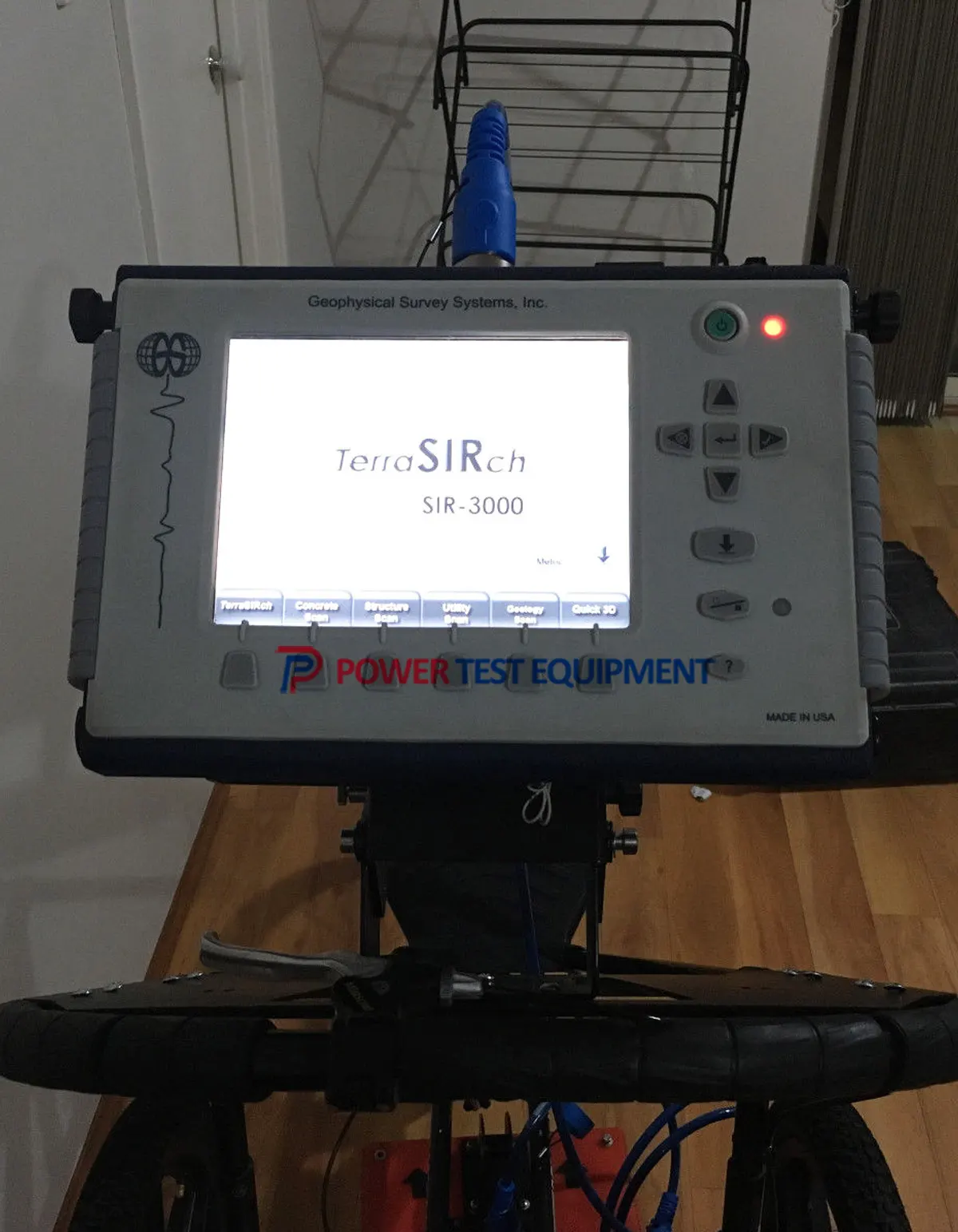

GSSI SIR 3000 Accurate GPR Controller

The SIR-3000 is the industry’s number one choice for data accuracy and versatility. This small, lightweight control unit is designed for single-user operation. The SIR-3000 provides the essentia features and flexibility that experienced GPR users require, as well as simplified, application-specific user interfaces for novice GPR users. The SIR-3000 incorporates advanced signal processing and display capability for ‘in-the-field’ 3D imaging. Unlike other data acquisition products on the market, the SIR-3000 is interchangeable with all GSSI antennas, making it an affordable and flexible option for multi-application users.

The success of the SIR 3000 data acquisition system results from GSSI’s 40 years as the world leader in the development and sale of ground penetrating radar. The SIR 3000 is the tool of choice when you need to make sure that your valuable research dollars are well spent. The 3000 sets the standard for small size, lightweight and rugged reliability while delivering superb data quality under tough field conditions. It can run most of GSSI’s huge variety of antennas and connects to GPS devices. When your project calls for non-invasive, fast, high-quality GPR survey results, turn to the SIR 3000. Once you see how easy the instrument is to use and transport, you’ll wonder how you did fieldwork without GPR.

  • Modular Design: Compatible with most GSSI antennas, Lightweight and portable, Removable and rechargeable batteries.
  • Integrated System: Running Windows based user interface, GPS integration (through external acumen data bridge), High-resolution colour screen that is visible over a wide range of light conditions, Rugged and weather resistant.
  • Deliver Results: Removable compact flash card memory and Large internal data storage.

Typical Uses

  • Concrete inspection
  • Utility location
  • Geological investigation
  • Archaeology
  • Forensics
  • Bridge deck inspection
  • Mining
  • And many other custom applications


Antennas Compatible with GSSI Analogue antennas
Number of Channels 1 (one)
Data Storage Internal memory: 2 GB Flash memory card Compact Flash port: Accepts CF memory up to 8 GB (using FAT 16 file format)
Display Enhanced 8.4: TFT, 800×600 resolution, 64K colors
Display Modes Linescan, O-scope, 3D
Data Acquisition
Data Format RADAN (.dzt)
Scan Rate Examples 220 scans/sec at 256 samples/scan, 16 bit 120 scans/sec at 512 samples
Scan Interval User-selectable
Number of Samples per Scan 256, 512, 1024, 2048, 4096, 8192
Operating Modes Free run, survey wheel, point mode
Time Range 0-8,000 nanoseconds full scale, user-selectable Gain: Manual or automatic, 1-5 gain points (-20 to +80 dB)
Filters Vertical: Low Pass and High Pass IIR and FIR Horizontal: Stacking, Background Removal
Languages English, French, Italian, German, Spanish, Japanese, Chinese
Operating Temperature -10°C to 40°C ambient
Charger Power Requirements 15 V DC, 4 amps
Battery 10.8 V DC, internal
Transmit Range Up to 100 KHz
Available Ports Antenna input DC power input Serial RS232 (GPS port) Compact Flash memory USB master slave
Dimensions 12.4 (l) x 8.7 (w) x 4.1 (h) in (31.5 x 22 x 10.5 cm)
Weight 9 lbs (4.1 kg) including battery
Environmental Water Resistant
